Provide you with enterprise-level interconnection chips
We offer a wide range of I2C interface chips, including buffers, I/O expanders, and level shifters, which simplify the I2C bus and reduce communication errors. It features a wide voltage range and a miniaturized package, making it easy to use in a variety of applications.

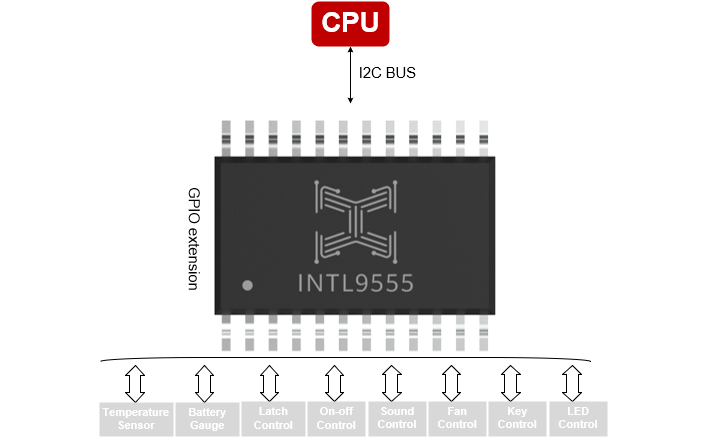

GPIO expanders help you increase the number of I/Os available in your system, offering you expanded I/O capabilities.

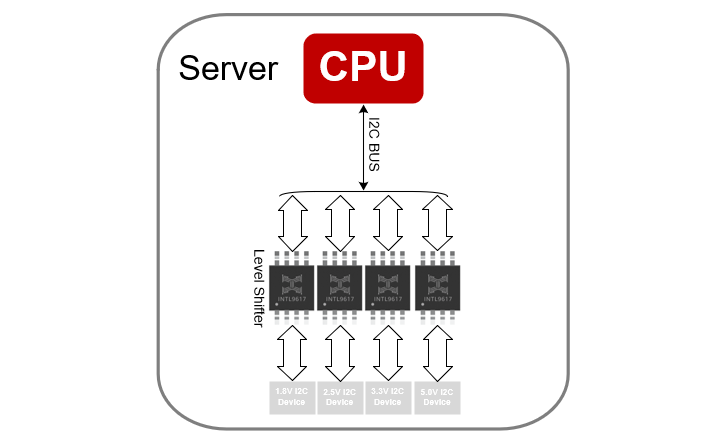

Level shifter solves the problem of mismatch between the voltage level of the I2C bus and the peripherals, and makes it easy for you to connect peripherals with different voltage levels.

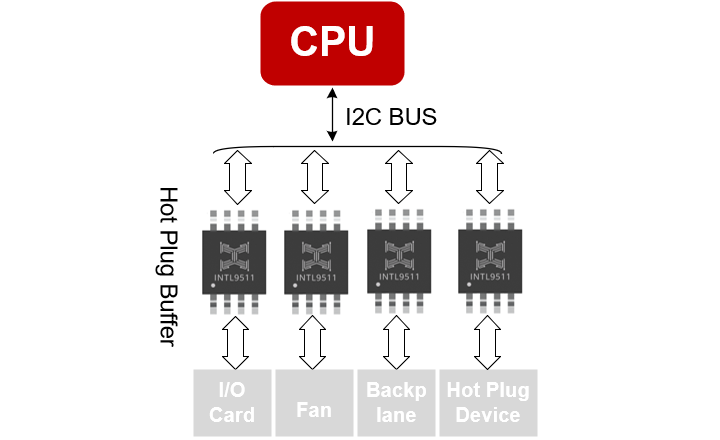

Hot swap buffers enable hot-swapping on the I2C bus to ensure system serviceability and scalability,. They are widely used in complex systems that need to connect and manage multiple devices.

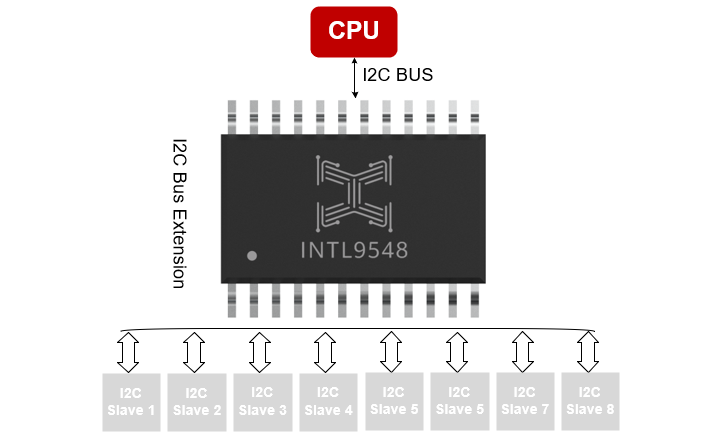

Switches and multiplexers extend the functionality of control systems by switching between I2C buses, eliminating address bus conflicts and helping you save system power consumption.
| Part .NO | Operating voltage | Input type | Output type | Output frequency(Max) | Additive jitter | Number of output channels | Operating temperature | Package |
| INTL9548 | 1.65~5.5V | 1 | 8 | not supported | support | 400KHz | -40℃~85℃ | TSSOP24 |
| INTL9546 | 1.65~5.5V | 1 | 4 | not supported | support | 400KHz | -40℃~85℃ | TSSOP16 |
| INTL9545 | 1.65~5.5V | 1 | 4 | support | support | 400KHz | -40℃~85℃ | TSSOP20 |
